Mill finish 3003 5052 6061 diamond aluminum coil sheet with PVC PE film for dance floor

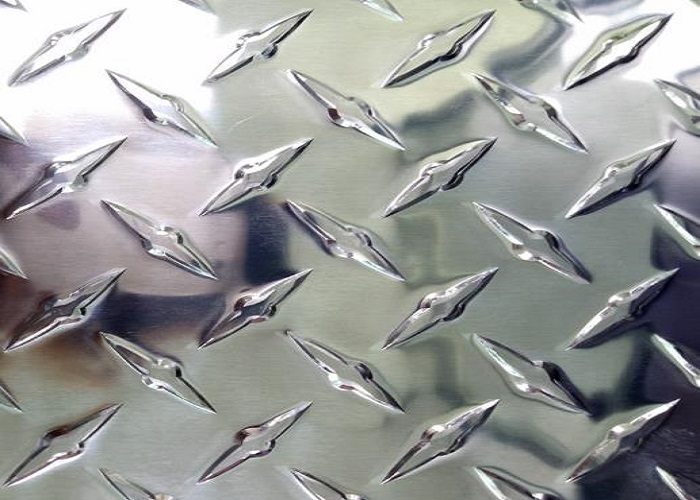

Diamond plate, also known as checker plate, tread plate and Durbar floor plate, is a type of metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless. Diamond plate is usually steel, stainless steel or aluminum.
| Product | diamond embossed aluminum sheet |
| Grade | 1050, 1060, 1100, etc. |
| Temper | 0,H12, H14, H16, H18,H24, H24,H26, H32,H34 |
| Plate Thickness | 0.3~5.0mm |
| Width | 400~1200mm |
| Length | max 3000mm for sheet or as required for coil |
| MOQ | 3 Metric ton |
| Free sample | Avaliable |
| Delivery time | 20-30 days after deposit |
Aluminum diamond plate is basically a sheet of aluminum on which a recurring pattern of raised diamonds is embossed or stamped. Due to its anti-slip and cosmetically-appealing texture, the plate is extensively used in dance floors, wall panels, counter tops, floor mats, and tool boxes. It is also used for the steps and floor bed of trucks, buses, trailers, and so forth.
Aluminum contains different properties and it makes a high valuable metal. Aluminum sheets made of diamond are used for different types of purposes in various industries and it is used for several purpose in home.
Aluminum diamond plates are used to manufacture dance floor, truck toolboxes, storage containers, running boards, wall panels and so on since it contains the raised diamond pattern on one side of the diamond plate.
By creating the raised diamond pattern on the surface of the aluminum diamond plate, it looks attractive.
Diamond plates are a robust material, which is a made of lightweight metal aluminum, which it provides brightness. It is possible to purchase the diamond plates in a pre cut form by specifying the thickness and size of the diamond plates. Sliced sheet distributor provides the diamond plate with specified range of thickness and its size and it is delivered to your doorstep.
Diamond aluminum sheet is a corrosion resistant material and it does not rust easily since it contains the diamond pattern on its surface and it is easy to clean.
The maintenance of the aluminum diamond plate is easy when it is compared with the other forms of metal. These are used for both practical and decroative applications since the surface of the diamond plates looks bright and effective in its form of the metal.
| Chemical Analysis of aluminum alloy Plate |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | 0.03 | Remains |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | - | - | - | - | - | Remains |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | - | - | Remains |
| 1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | - | - | 0.1 | - | - | Remains |
| 1200 | 1 | 1 | 0.05 | 0.05 | - | - | - | 0.1 | 0.05 | Remains |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | - | - | 0.1 | - | Remains |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | - | 0.25 | - | Remains |
| 5042 | 0.2 | 0.35 | 0.15 | 0.2--.5 | 3.0-4.0 | 0.1 | - | 0.25 | 0.1 | Remains |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | - | 0.1 | - | Remains |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | - | 0.25 | - | Remains |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | - | 0.2 | - | Remains |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | - | 0.25 | - | Remains |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45 | 0.1 | - | 0.1 | - | Remains |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | - | 0.2 | - | Remains |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | - | 5.7-6.7 | 0.06 | Remains |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | - | 5.1-6.1 | 0.2 | Remains |
